Jambo Parts -- Heavy Duty Cooling

Heavy-Duty Cooling
The Jambo came standard with a heavy-duty cooling system, which included 7-blade fan, instead of 4, a fan shroud, and a 17-fins per inch radiator.
The Jambo radiator (1), like all CJ radiators, was two-core. However, the heavy-duty radiator has 17 fins per inch, instead of 11 or 13.

In addition, the fan (15) was a seven-blade, 19.5" diameter, unit, instead of five blades.

Finally, the Jambo had a fan shroud (13)
The part number for the Jambo radiator was J536 2492.

The shroud part number was J536 2539.

The fan was J535 7390 (w/o fan drive) and J099 4277 (w/ fan drive).

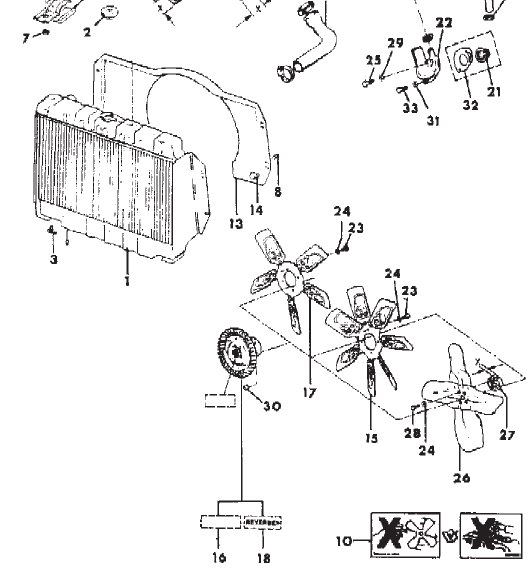

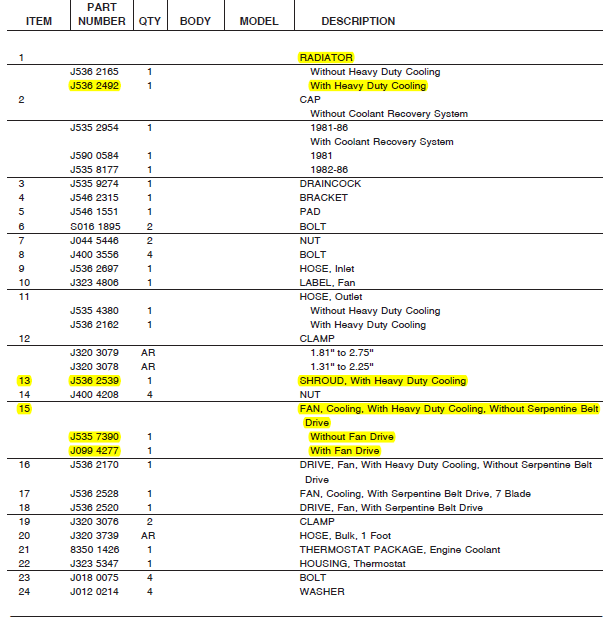

Here is the page from the parts catalog.

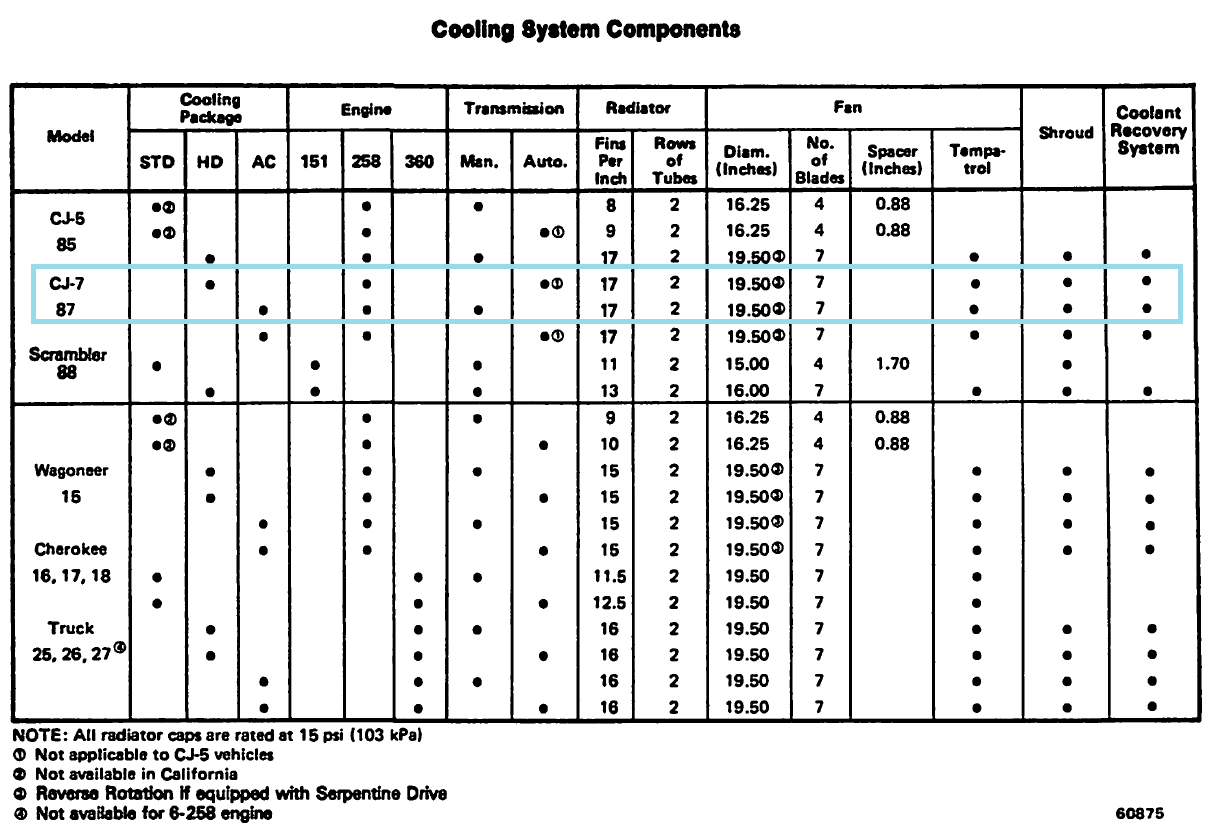

Here is a chart showing the cooling system configuration for Jeep vehicles:
